Overview:

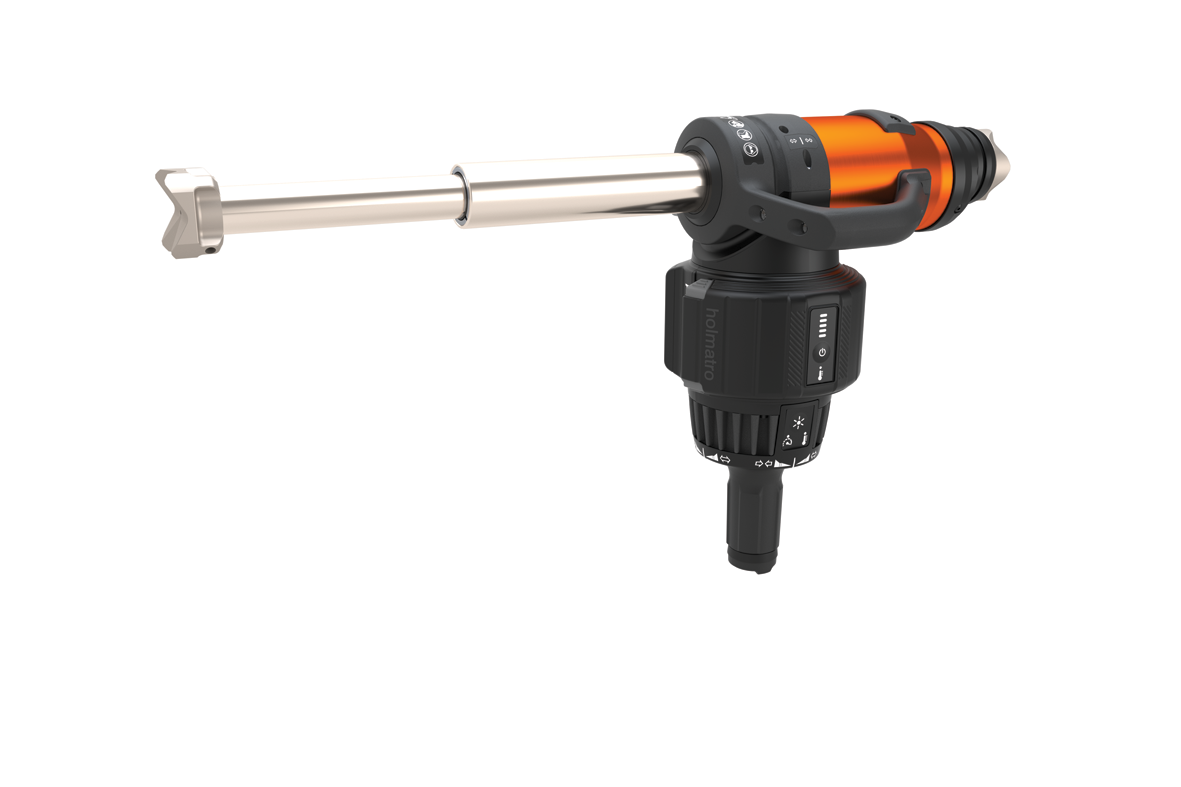

Compact Cordless Telescopic Ram, part of the Holmatro Pentheon Series.
Specifications:
| Basic specifications | ||
| model | PTR40 | |
| max. working pressure | 7,832 psi | |
| battery included | no | |
| Performance | ||
| max. spreading force 1st plunger | 30,574 lbf | |
| max. spreading force 2nd plunger | 14,613 lbf | |
| spreading stroke 1st plunger | 8.5 in | |
| spreading stroke 2nd plunger | 7.6 in | |
| total spreading stroke | 16 in | |
| retracted length | 15.2 in | |
| extended length | 31.2 in | |
| protection rate | IP57 | |
| directives | 2006/42/EC, 2014/30/EU | |
| General specifications | ||
| number of plungers | 2 | |
| Dimensions, weight and temperature | ||
| weight, ready for use | 34.2 lb | |
| weight excl. battery | 30.9 lb | |
| dimensions (AxBxC) | 15.2 x 10.1 x 17.4 in | |
| Norms | ||
| EN 13204 classification | TR136/215-65/192-15.5 | |
| NFPA 1936 compliant | yes | |
| EN 13204 compliant | yes | |
| NFPA 1936, HSF | 30,574 lbf | |
| NFPA 1936, LSF | 14,613 lbf | |
