Overview:

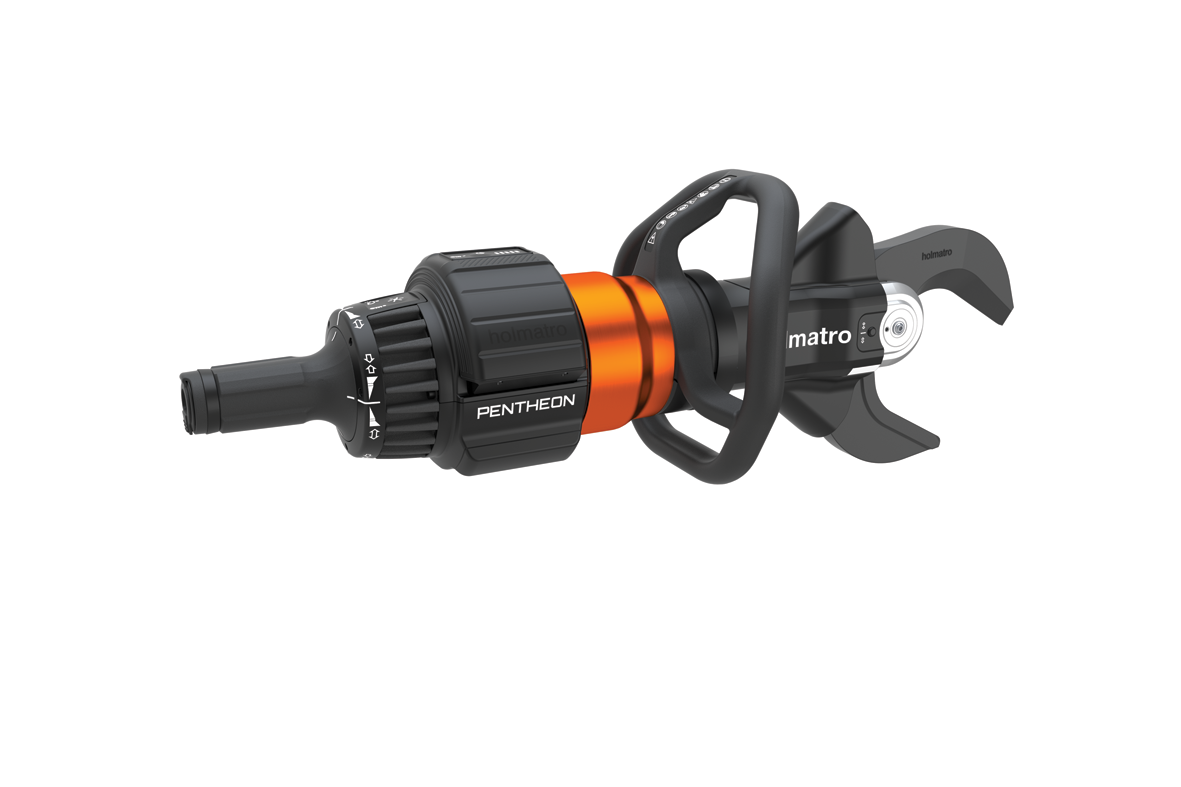

Cordless Inclined Cutter, part of the Holmatro Pentheon Series.
Specifications:
| Basic specifications | ||||
| model | PCU40 | |||
| max. working pressure | 10443 psi | |||
| battery included | no | |||
| Performance | ||||
| max. cutting opening | 6.7 in | |||
| protection rate | IP57 | |||
| directives | 2006/42/EC, 2014/30/EU | |||
| theoretical cutting force | 171,754 lbf | |||
| General specifications | ||||
| NCT | yes | |||
| cutter jaw | inclined | |||
| Dimensions, weight, and temperature | ||||
| weight, ready for use | 41.9 lb | |||
| weight excl. battery | 38.6 lb | |||
| dimensions (AxBxC) | 32.8 x 10.6 x 11.8 in | |||
| Norms | ||||
| EN 13204 classification | BC165I-19 | |||
| NFPA 1936, cutting capacity | A7 B7 C6 D7 E8 F3 | |||
| NFPA 1936 compliant | yes | |||
| EN 13204, cutting capacity | 1I 2I 3I 4J 5J | |||
| EN 13204 compliant | yes | |||
| Cutting performance | ||||
| round bar (S235 acc. to EN 13204) | 1.4 in | |||
